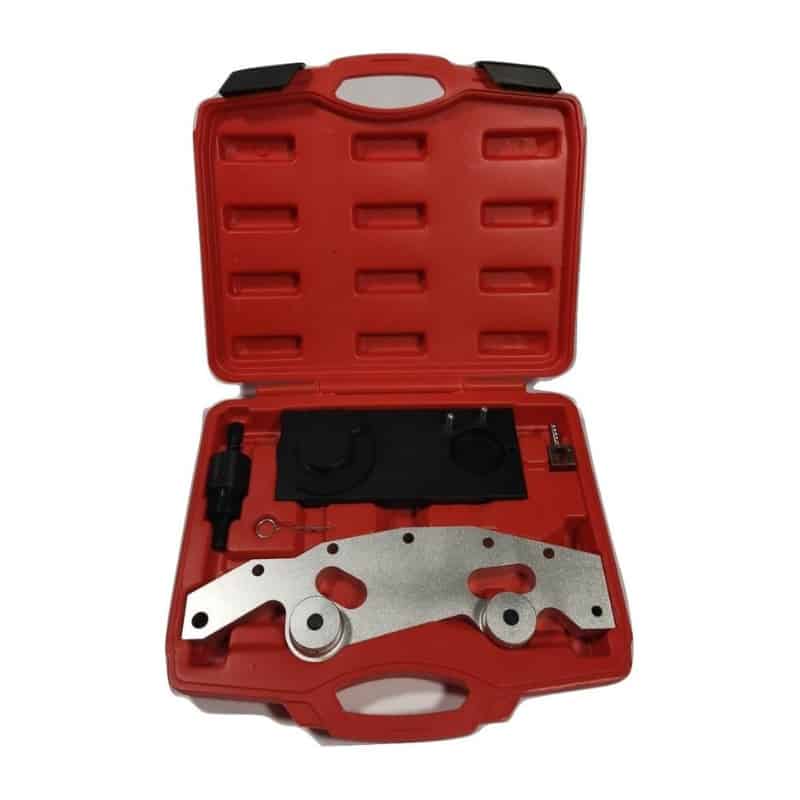

BMW - M52TW / M54 / M56 - Engine Timing Tool Kit

Description

Camshaft Alignment Tool

Use with M0906533/GT-BM05 to Fix the Camshaft

Application

BMW

Engine codes:

M52TW, M54, M56

Removal, Installation and Alignment For BMW 1998 and Newer 6 cylinder Engines
BMW ：M52T (1997- 2001), M52TU (1998-2002), M54 (2001-2004) M56 (2003 -present) engine

Compatibility – BMW

• M52TW, M54, M56. M52TUB25 – 1997 to 2001
• E46 323i/323Ci/323ti (M52T) – 1998 to 2001
• E39 523i (M52TU) – 1998 to 2001
• E36 Z3 (M52TU) M52TUB28 – 1997 to 2001
• E46 328i/328Ci (M52TU) – 1997 to 2001
• E36 Z3 2.8 (M52B28/Z3) – 1998 to 2001
• E39 528i (M52TU) – 1998 to 2001
• E38 728i (M52TU) M54B22 – 2001 to 2003
• E46 320i/320Ci – 2001 to 2003
• E39 520i – 2001 to 2003
• E85 Z4 2.2i – 2001 to 2003
• E60 E61 520i – 2001 to 2003
• E36 Z3 2.2i M54B25 – 2001 to 2002
• E36/7 Z3 2.5i – 2001 to 2005
• E46 325i/325xi – 2001 to 2006
• E46 325Ci – 2001 to 2004
• E46 325ti – 2001 to 2004
• E39 525i – 2003 to 2004
• E60/E61 525i/525xi – 2004 to 2006
• E83 X3 2.5i – 2004 to 2006
• E85 Z4 2.5i M54B30 – 2001 to 2005
• E46 330i/330xi – 2001 to 2006
• E46 330Ci – 2001 to 2003
• E39 530i – 2001 to 2002
• E36 Z3 3.0i – 2003 to 2005
• BMW E60 530i – 2003 to 2006
• E85 Z4 3.0i – 2004 to 2006
• E83 X3 3.0i – 2001 to 2006
• E53 X5 3.0i – 2001 to 2006

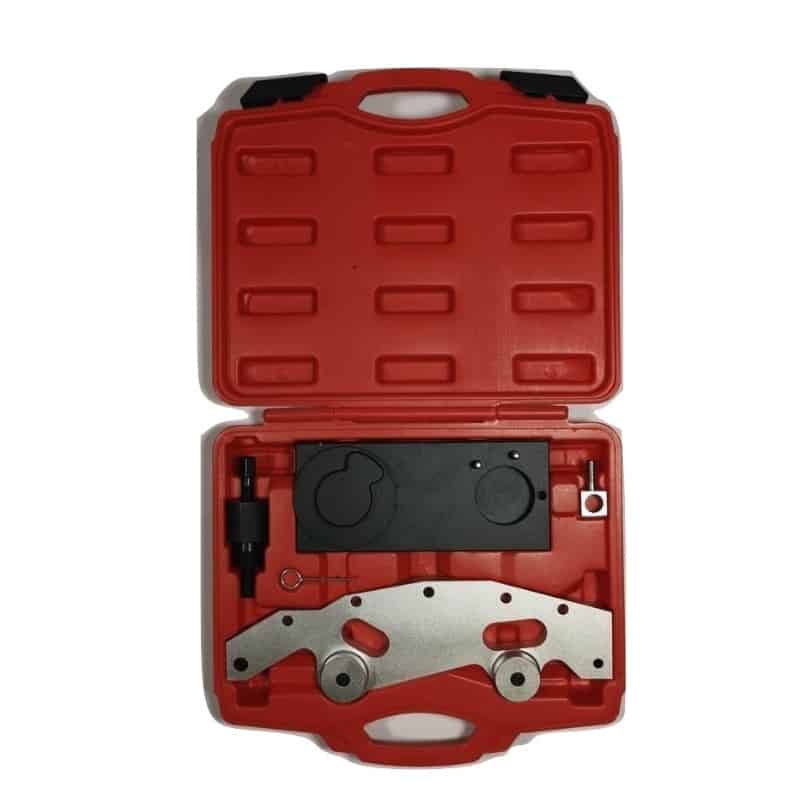

Timing Tool Components

• Alignment Plate Jig: Adjusting plate for setting valve timing on engine with double Vanos.
• Procket Assembly Jig (black plate): Use for pre-assembling secondary chain sprockets w/ chain on camshafts
• Rigid Chain Tensioner: Apply tension to the primary chain
• Chain Tensioner Lock Pin: Locks chain tensioner
• VANOS Banjo Fitting Compressor air connection: For applying pressure to single/double Vanos unit Use.
• Sprocket Jig: Place chain wheels, position tooth gap in inlet chain wheel and feed on chai
